xlReg Cluster Registry

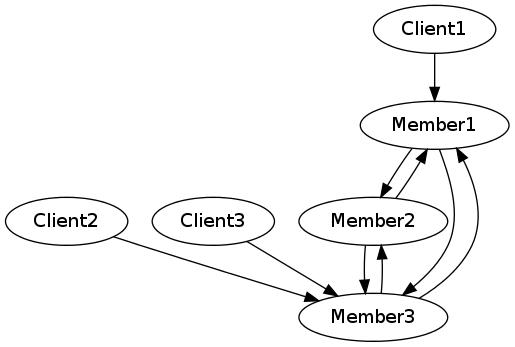

As the term is used here, an xLattice registry is a protocol for communicating between parties in a traditional server/client relationship. On the one hand we have independent xLattice nodes which may cooperate as an xLattice cluster, a collection of peers that communicate with one another over links dedicated to this purpose. On the other hand we have a single xlReg server which is identified by its NodeID (a 20- or 32-byte value). The server has a well-known address, a tcp/ip port in an address region (an overlay ), accessible to the nodes wishing to form the cluster. The xlReg server also has two well-known RSA public keys, one (ck) for use in encrypting data and the other (sk) for use in creating digital signatures.

Clients join a cluster by sending a Hello message to the server to agree on communications and then send an encrypted Join message with their details.

The Hello is encrypted using the server’s RSA public key. It contains a salt (salt1), a requested version number, and an AES IV and key (keyIV) used only to encrypt the reply, the HelloReply. This iv+key is created by the client and used once and once only by the server.

The HelloReply contains the original salt, another salt (salt2), the protocol version to be used, and the AES IV and key (keyIV2) used for the rest of the session. By deciphering the first salt, the server has proved its identity - that is, it has proved that it has the secret RSA key corresponding to the public key. If the Hello is in some way ill-formed, the server will silently close the connection. The client will do the same if the HelloReply is not properly encrypted using keyIV or does not contain the correct value for the salt. From this point keyIV2 is used by both sides to encrypt session traffic.

The version number is currently ignored. The expectation is that at some point the version number in the Hello will be that requested by the client and the version number in the reply will be that actually used by the server.

In the next step the client sends a Client message with either a proposed clientName and a token or a clientID and salt2 from the HelloReply. In the first case the token will contain, among other things, a proposed Attrs bit string. In either case the message is signed using the client’s public key for signatures. The server replies with a ClientOK message or an error message. The ClientOK contains a possibly uniquified clientName, the actual clientID, and a possibly modified Attrs bit string, the value that the server will use from this point forward.

At this point the client can send either a Create message, a Join, a Get, or a Bye.

The Create message contains a cluster name and client-proposed size. The server returns a Create reply which contains the cluster ID, its possibly uniquified name, and its actual size. If the cluster did not previously exist, this message will create it with the size proposed, but constrained to be in the range 2 .. 64 inclusive. If the cluster already exists, the proposed size is ignored.

A Create can be used simply to get the clusterID and size of an existing cluster.

The cluster size is the maximum number of clients that will be allowed to join the cluster. It does not change as members join.

The Join message contains a clusterName or ID. The server returns either clusterID and size or an error message.

A Get message may contain a clusterID or a Which field, which indicates which member descriptions (tokens) are requested. The server will return either an error message or a Members message containing a clusterID, a Which field identifying the members whose information follows, and a list (an array) of member tokens.

If the clusterID is not present, the server will assume the ID associated with any previous Create or Join.

If the Which field is present, the server will return tokens for the Nth member wherever bit N is set in Which. If Which is absent, the server will act as though all possible Which bits are set. In any case, the server will return a token wherever the corresponding member has been defined, and then will return a Which value indicating which tokens are present.

The first token in the Members message will correspond to the lowest bit set, any second bit to the second lowest bit, and so forth. If no one has joined the cluster or none of the selected members is as yet defined, the Which field will be zero.

Clients can make any number of Get requests. The normal behavior will be to poll until the client has tokens for all cluster members. Alternatively the client can close the connection and return later.

The client ends a session by sending Bye to the server. The server replies with an Ack and closes the connection.

Error messages from the server contain a string describing the problem. The server will send the message and then close the connection without waiting for a reply.

Look here for a more detailed description of the xlReg protocol.
